Thursday, December 30, 2010

Bruter 1.1 final

Finally, it is out :). I can do it before new year.

The new things since beta2 are (not including bug fixes)
- HTTP digest authentication
- SIP protocol

Happy new year ;)

Update (4 Jan 2011):
Sorry, I did a mistake again in binary. I included the wrong openssl file ("libssl32.dll" instead of "ssleay32.dll"). If you have a problem when starting my app. Try to download it again.

Thursday, December 23, 2010

Excel RC4 Encryption Algorithm

I played a wargame. There is a protected xls file. I could not find a free tool to break it. When I tried to use their trial tools, there is a instant recovery feature. I wonder how they do it. I decided to read the encryption algorithm. I knew the default Office 2003 encryption algorithm is RC4. After some searching, I found the Microsoft Document
- http://msdn.microsoft.com/en-us/library/dd907466%28v=office.12%29.aspx
- http://msdn.microsoft.com/en-us/library/dd905723%28v=office.12%29.aspx

The first link is how the RC4 key is generated and what is stored in xls file. The second link is what contents to be encrypted.

After understanding the Excel password, I code the python for testing the password test_xls_pass.py. Here is the important part.
def gen_excel_real_key(pwd, salt):
    h0 = hashlib.md5(pwd).digest()
    h1 = hashlib.md5((h0[:5] + salt) * 16).digest()
    return h1[:5]

def test_pass(pwd, salt, verifier, verifierHash):
    real_key = gen_excel_real_key(pwd, salt)
    key = hashlib.md5(real_key + '\x00\x00\x00\x00').digest()
    dec = rc4_crypt(key, verifier + verifierHash)
    if hashlib.md5(dec[:16]).digest() == dec[16:]:
        print "valid pass"
    else:
        print "invalid pass"

"salt", "verifier", and "verifierHash" can be extracted from FILEPASS record in Excel file. Can you see it? The "real_key" is only 5 bytes (40 bits). If you can find this key, no need to use password. The key space of real_key is 240. It is possible to do brute forcing. But is it easier than brute forcing password?

Compare it to alphanumeric password case insensitive. The key space of 8 characters is 368 = (32+4)8 = (25 + 4)8 > 240.

Another problem of brute forcing real_key, rc4 is slow compared to md5. I tried it with my simple C code. I get about 800,000 key/sec with 1 thread on Intel Core2 Q8300 2.5GHz. It takes about 16 days with 1 thread to try the whole key space. With GPUs, real_key is possible to be cracked in a few minutes.

What can we do when we get the real_key? There is the tool named guaexcel. The demo version allows you to use any real_key to decrypt any Excel file.

MS Word is the same as MS Excel. Just change the stream name from "Workbook" to "worddocument" stream. Then use tool named guaword to decrypt the Word file.

PS: If I have time, I will optimize the code and release it for free :). But do not expect it to be fast as commercial one.

Tuesday, December 7, 2010

Use OllyDbg to find ROP gadgets

I just tried writing a exploit with ROP technique. When I searched a tool to help me finding gadgets, I found only Immunity Debugger with pvefindaddr.

But I never used it. I am lazy to learn it now (I will later). I knew msfpescan with regex option can help me but it is too difficult. Then I tried with OllyDbg. I found a nice feature to help me finding gadgets. Here what I found

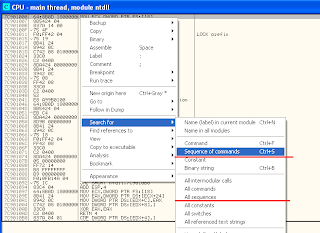

There is a search for sequence of commands when right click on CPU windows. Then it shows a dialog for typing assembly.


In this search dialog, we can use special commands and keywords. Below are what I excerpt from OllyDbg help "Search for a sequence of commands"
- R8, R16, R32 for any 8, 16, 32 bit register respectively.
- CONST for any constant
- JCC for any conditional jump
- ANY n for any 0..n commands

"Search for sequence of commands" find only one block. It is so inconvenient for us to choose a gadget. So I will show only "Search for all sequence" (the second red line of the first pic).

Let try with common gadget used for pivoting esp. I put "add esp,CONST;ANY 6;ret" to search "add esp" in ntdll.dll (on my Windows XP SP3). Here the results.


Assume We are interested "add esp, 74". Just double click it, we will see the assembly block like above pic. Then we can check if it is usable. As the above assembly code, we can use it if eax is zero.

I think this feature is nice. But I can search in only one executable module at a time :(. If someone know how to search in all modules, please tell me.;)
